DJI Dock 3

DJI Dock 3 Overview

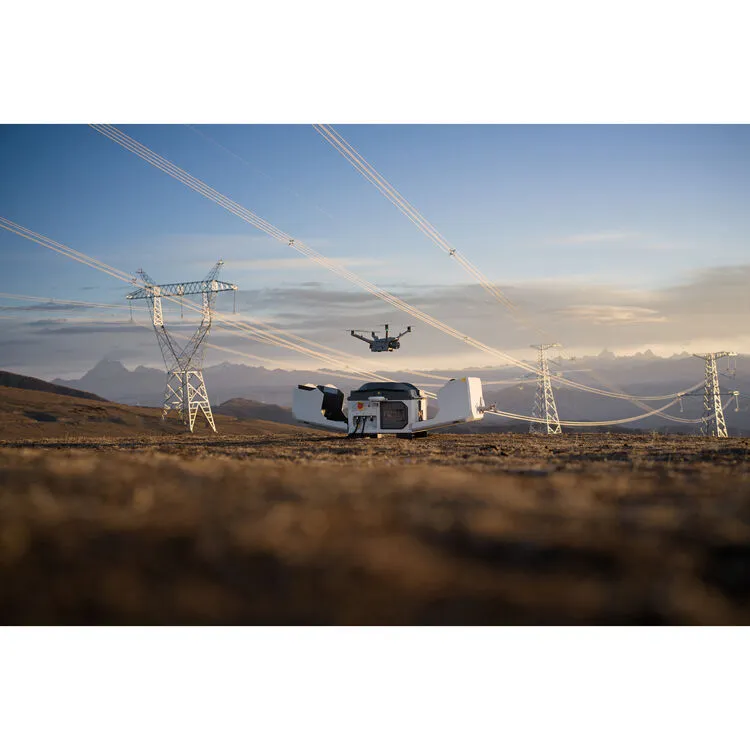

The DJI Dock 3 is a rugged, next-generation autonomous drone docking solution designed to deploy the DJI Matrice 4D and Matrice 4TD for reliable, unattended operations. Built for demanding environments, Dock 3 features an IP56 weather rating, an expanded operating temperature range, rapid aircraft charging, and support for both fixed and vehicle-mounted deployment. Integrated environmental sensors, internal and external security cameras, and RTK positioning help enable safe and precise automated missions. Combined with the Matrice 4D Series and DJI FlightHub 2, Dock 3 provides an efficient solution for remote inspections, public safety, surveying, infrastructure management, and other automated drone operations.

‍

DJI Dock 3 Key Highlights:

• IP56 weather rating
• 10km effective operating radius
• Environmental monitoring system with wind speed, rainfall, temperature, water immersion, and humidity sensors
• Rapid aircraft charging – 15% to 95% in approximately 27 minutes
• 4+ hour backup battery
• Wide operating temperature range from -30°C to 50°C (-22°F to 122°F)
• Vehicle-mounted deployment support for greater flexibility in mobile operations
• Quick takeoff capability allowing the aircraft to prepare for flight as soon as the dock cover opens
• DJI FlightHub 2 and Cloud API integration

‍

DJI Dock 3 Specs:

• Weight: 55 kg without aircraft

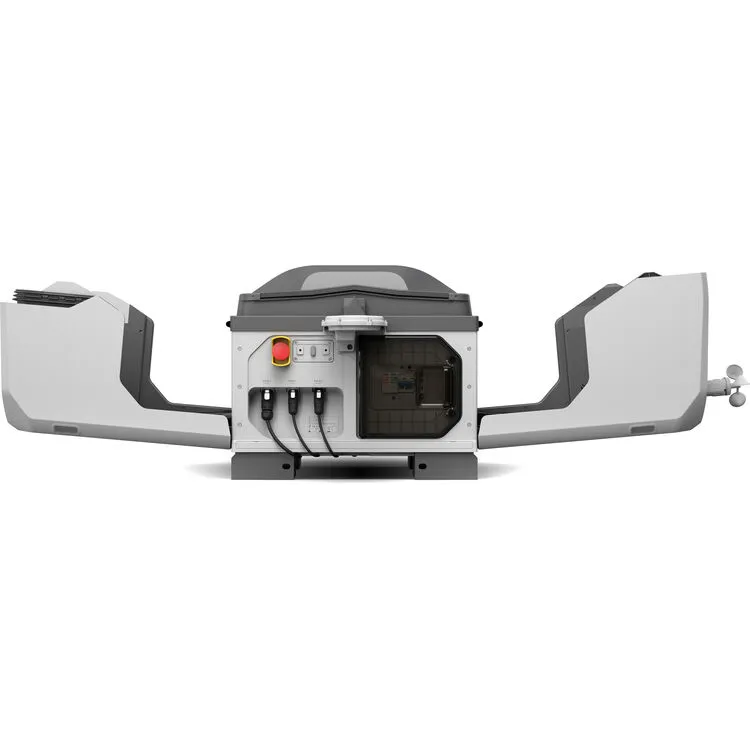

• Size (Dock Open): 1760 × 745 × 485 mm‍

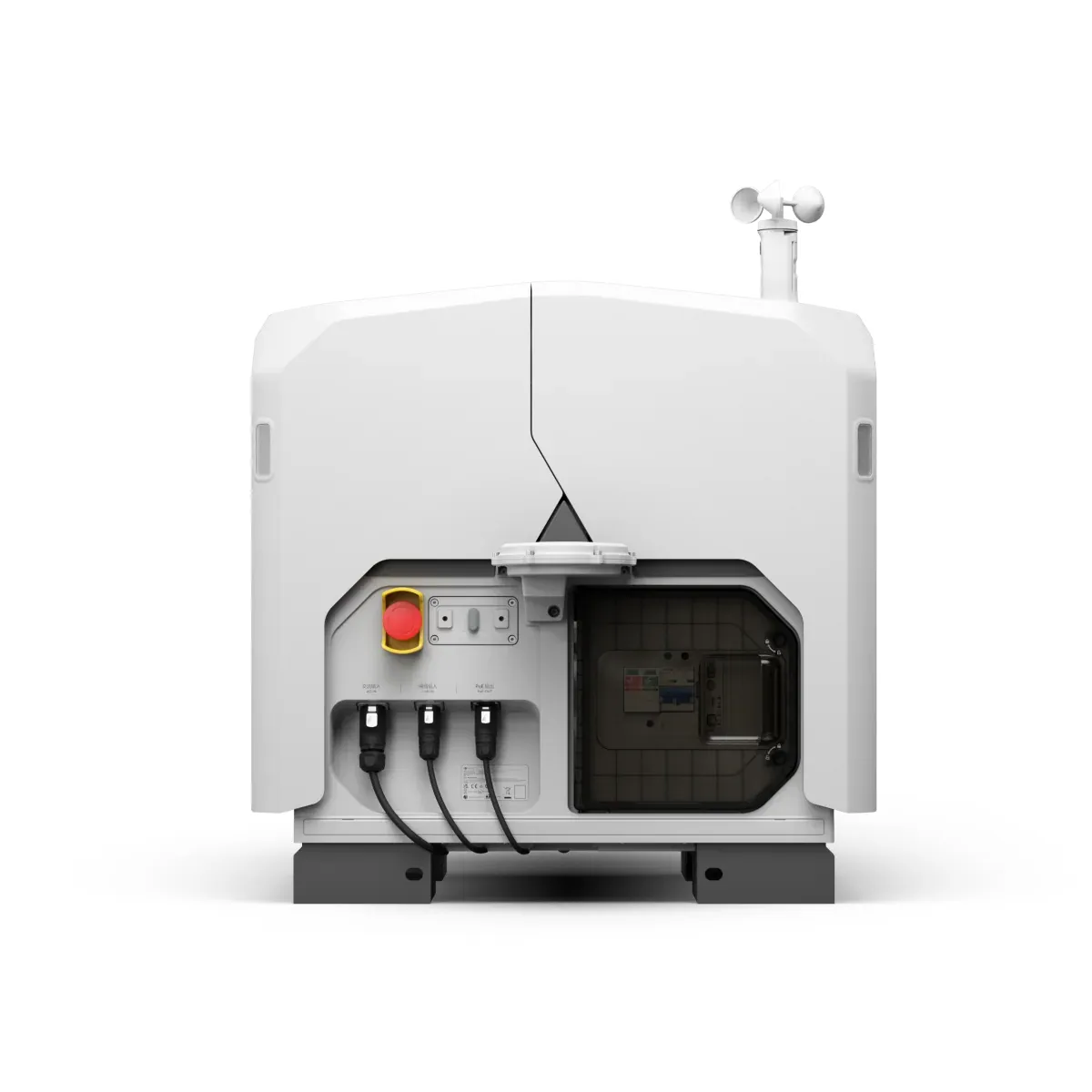

• Size (Dock closed): 640 × 745 × 770 mm
• Input Voltage: 100–240 V AC, 50/60 Hz
• Input Power: Max 800 W
• Temperature: -30°C to 50°C (-22°F to 122°F)
• IP Rating: IP56
• Maximum Operating Altitude: 4500 m
• Maximum Operating Radius: 10 km with Matrice 4D Series under specified conditions
• Aircraft Charge Time: 27 min (15%–95%)
• Battery Backup: More than 4 hours
• Aircraft Compatibility: DJI Matrice 4D and Matrice 4TD
• Cloud Platform: DJI FlightHub 2, FlightHub 2 On-Premises, FlightHub 2 FlightHub Sync, and DJI Cloud API
• Development: DJI Cloud API with support for edge computing
• Security Cameras: Internal and external 1080p cameras with 151° field of view and auxiliary white lights
• Environmental Sensors: Wind speed, rainfall, ambient temperature, water immersion, internal temperature, and internal humidity monitoring

‍

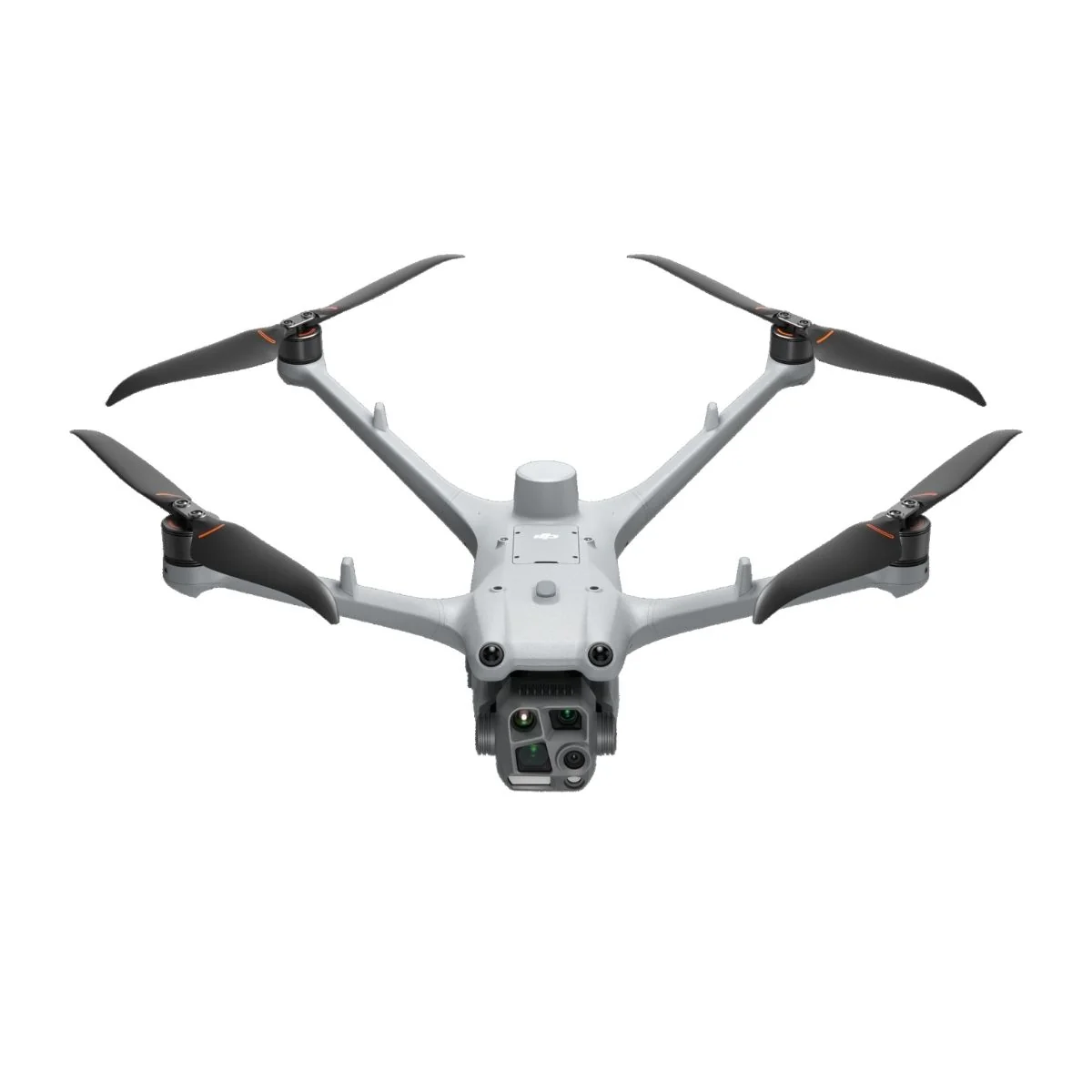

Matrice 4DT Overview:

Designed specifically for the DJI Dock 3, the DJI Matrice 4TD is a rugged, high-performance enterprise drone built for automated inspections, public safety, emergency response, and around-the-clock remote operations. Featuring an IP55 rating, up to 54 minutes of flight time, a 10 km maximum operating radius with DJI Dock 3, and integrated RTK positioning, the Matrice 4TD delivers reliable performance in demanding environments.

The Matrice 4TD features an advanced multi-sensor camera system consisting of a 48 MP wide-angle camera, 48 MP medium tele camera, 48 MP tele camera, and 640 × 512 thermal camera. The thermal camera supports UHR Infrared Image mode at up to 1280 × 1024 @ 30fps, while the tele camera provides up to 112× hybrid zoom. An integrated laser rangefinder offers measurements at distances up to 1,800 m, while an NIR auxiliary light enhances visibility during nighttime operations. Combined with omnidirectional obstacle sensing and enhanced low-light capabilities, the Matrice 4TD is well suited for Drone as First Responder (DFR), infrastructure inspections, emergency response, government operations, and security applications.

‍

Matrice 4DT Key Highlights:

• 640 × 512 @ 30fps Infrared Thermal Camera
• IP55 rating
• 54-minute flight time
• 10 km effective range (with DJI Dock 3)
• Integrated RTK module
• Omnidirectional obstacle sensing with binocular vision and a downward 3D infrared sensor
• 112× hybrid zoom for detailed long-range inspection
• 1,800 m laser rangefinder for remote distance measurement
• NIR auxiliary light with illumination up to 100 m for enhanced nighttime operations

‍

Matrice 4DT Key Specs:

• Wide-angle camera: 1/1.3″ CMOS, 48 MP, 24 mm equivalent, f/1.7
• Medium Tele Camera: 1/1.3″ CMOS, 48 MP, 70 mm equivalent, f/2.8
• Tele camera: 1/1.5″ CMOS, 48 MP, 168 mm equivalent, f/2.8, up to 112× hybrid zoom
• Thermal camera: 640 × 512 @ 30fps; up to 1280 × 1024 @ 30fps in UHR Infrared Image mode
• Thermal Digital Zoom: Up to 28×
• Thermal Measurement Range: -40°C to 150°C in High Gain Mode; 0°C to 500°C in Low Gain Mode
• Laser Rangefinder: Up to 1,800 m at 20% reflectivit
• NIR Auxiliary Light: Approx. 100 m illumination distance
• Weight (with battery): 1,850 g
• Maximum horizontal speed: 21 m/s
• Maximum wind speed resistance:
  • Operation: 12 m/s
  • Take-off/Landing: 12 m/s
• Maximum flight time: 54 min
• Maximum hover time: 47 min
• Maximum Flight Distance: 43 km
• Maximum Takeoff Altitude: 6,500 m
• IP rate: IP55
• Temperature: -20°C to 50°C (-4°F to 122°F)
• RTK Module: Integrated
• Obstacle Sensing: Omnidirectional binocular vision system supplemented by a downward 3D infrared sensor
• Gimbal: 3-axis mechanical gimbal with upward viewing capability for applications such as bridge and structural inspections
