Vector AI

Overview

Vector AI is Quantum Systems' next-generation mid-range eVTOL sUAS designed for mission-critical Intelligence, Surveillance, and Reconnaissance (ISR) operations. As the ultimate 2-in-1 system, Vector AI features both fixed-wing and multicopter configurations sharing a common fuselage, enabling toolless transition within minutes. Equipped with dual NVIDIA Jetson Orin processors, AES-256 encrypted communications, and the Raptor-360 EO/IR gimbaled sensor, Vector AI delivers advanced automation and real-time tactical intelligence for military, defense, and public safety operations.
‍

Key Highlights

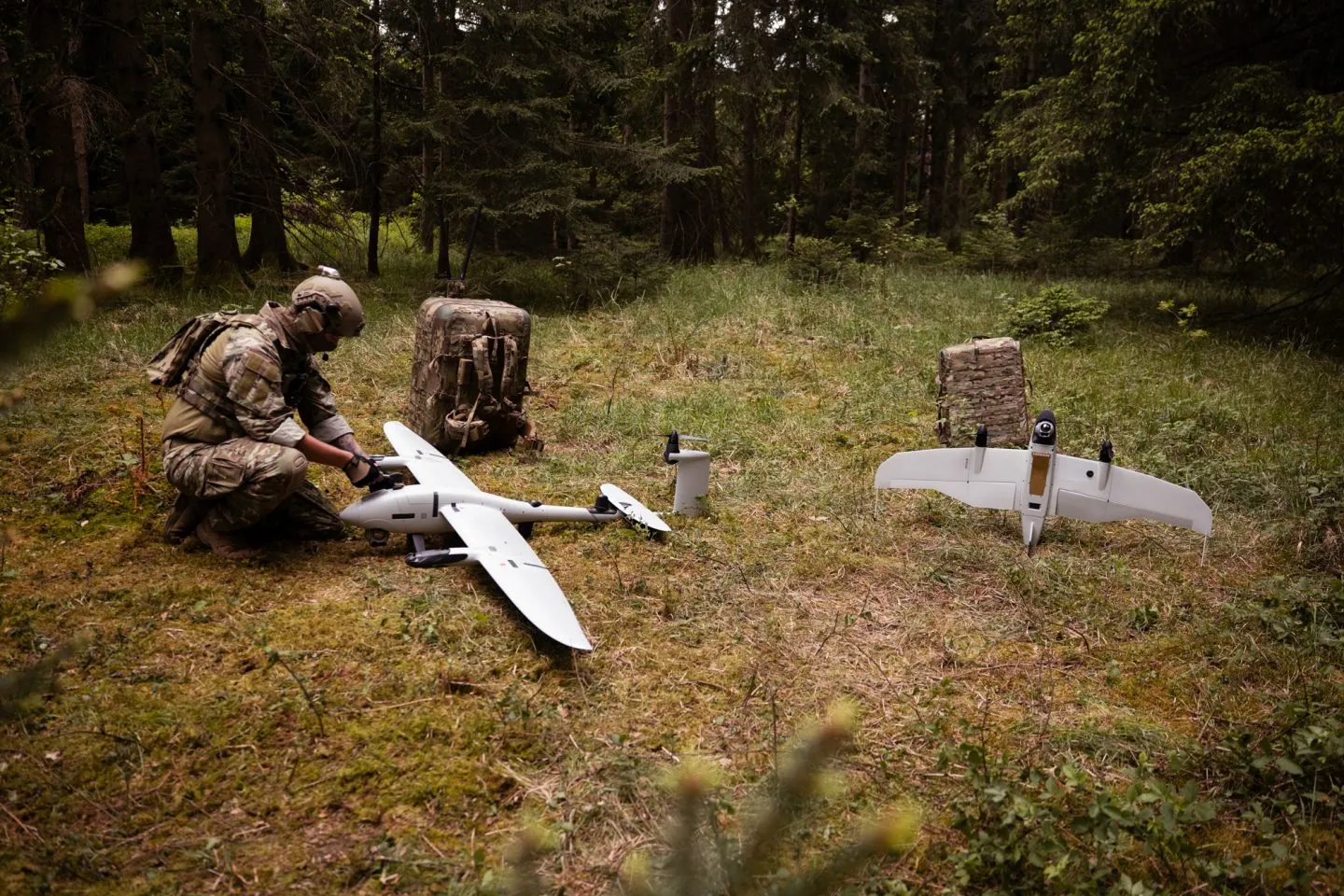

2-in-1 System - Effortless toolless transition between fixed-wing (180+ min endurance) and multicopter configurations for maximum operational flexibility.

Edge AI Capabilities - Dual NVIDIA Jetson Orin processors enable real-time object detection, classification, and tracking for immediate tactical insights.

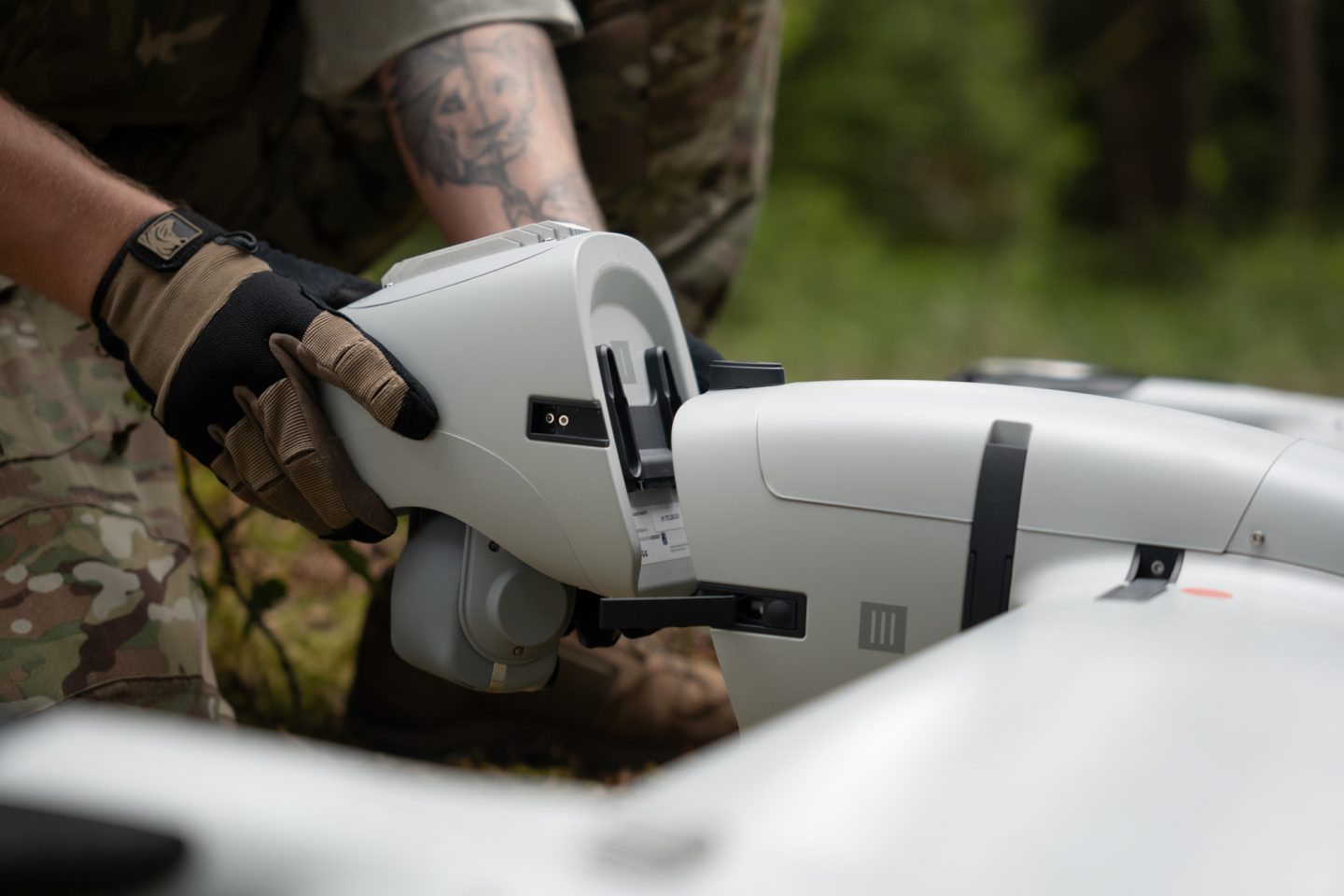

One Person Set-Up - Complete deployment by single operator in under 3 minutes with no tools required.

Expandable Sensor Suite - Modular auxiliary bays support SIGINT payloads, CRPA modules, tethering, acoustic sensors, and additional data links.

Long-Range Communications - Encrypted Silvus mesh network with 60+ km range, 7 ms latency, and AI-driven anti-jamming.

Low Signature Operations - Multicopter variant features reduced acoustic and visual footprint for covert surveillance.
‍

Key Specifications

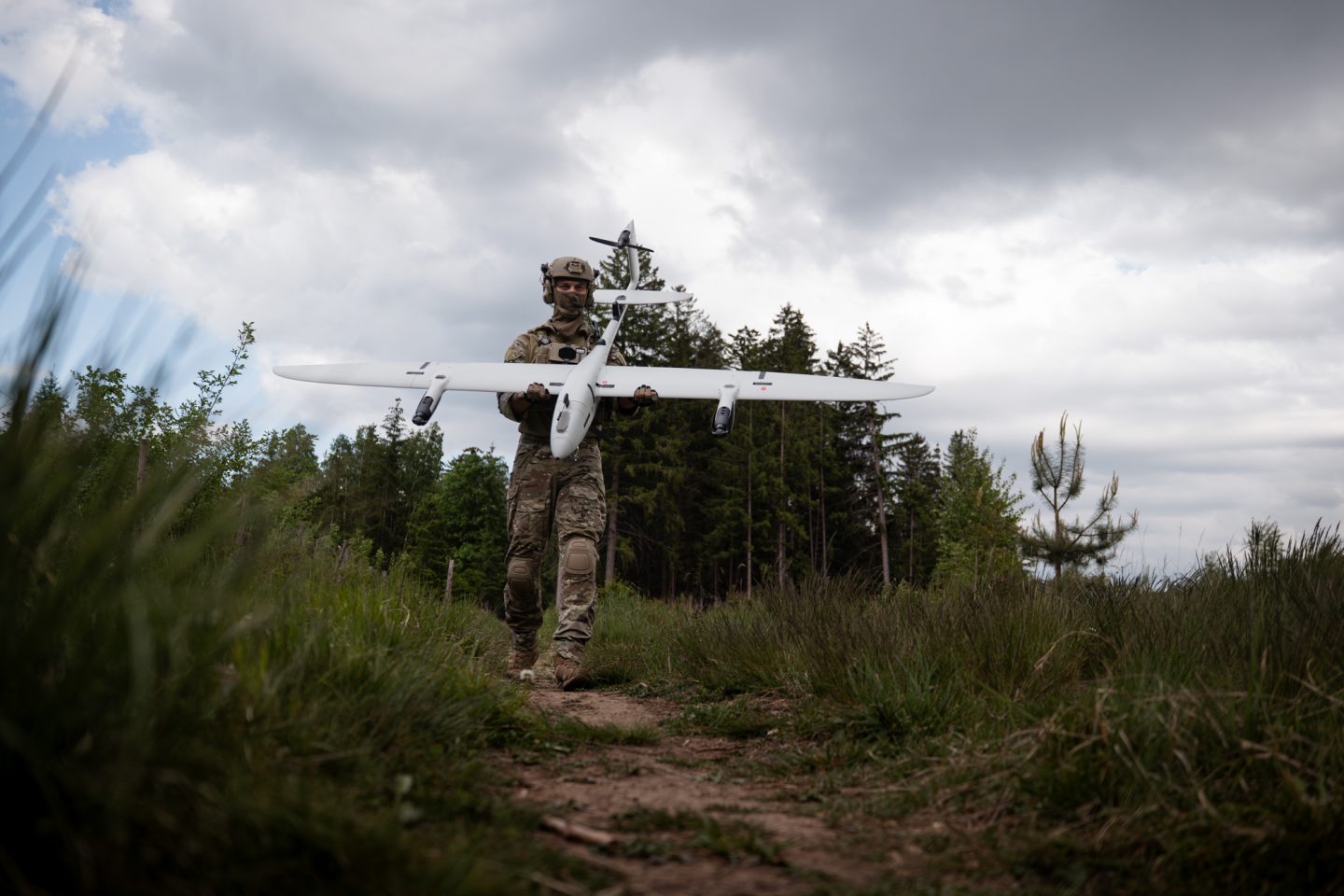

Vector AI Fixed-Wing

• Wingspan: 2.8 m (9.2 ft)
• MTOW: 9.5 kg
• Flight Endurance: 180+ minutes
• Wind Tolerance: 10 m/s (ground), 12 m/s (air)
• Max Operating Altitude: 4,000 m MSL
• Data Link Range: 60+ km
• IP Rating: IP55

Vector AI Multicopter

• Wingspan: 1.37 m
• MTOW: 8.0 kg
• Wind Tolerance: 10 m/s
• IP Rating: IP54

Raptor-360 Gimbaled Sensor

Electro-Optical (EO)

• 1280 x 720 px, 40x optical zoom
• Detection: 10 km (person) / 40 km (vehicle)
• 360° continuous pan

Thermal (IR)

• 1280 x 720 px, LWIR 8-14 μ
• Detection: 4.5 km (person) / 6 km (vehicle)
• Image stabilization

Communication Systems

• Encryption: AES-256
• Network: Silvus Mesh
• Frequencies: 2.2-2.5 GHz, 4.4-4.9 GHz

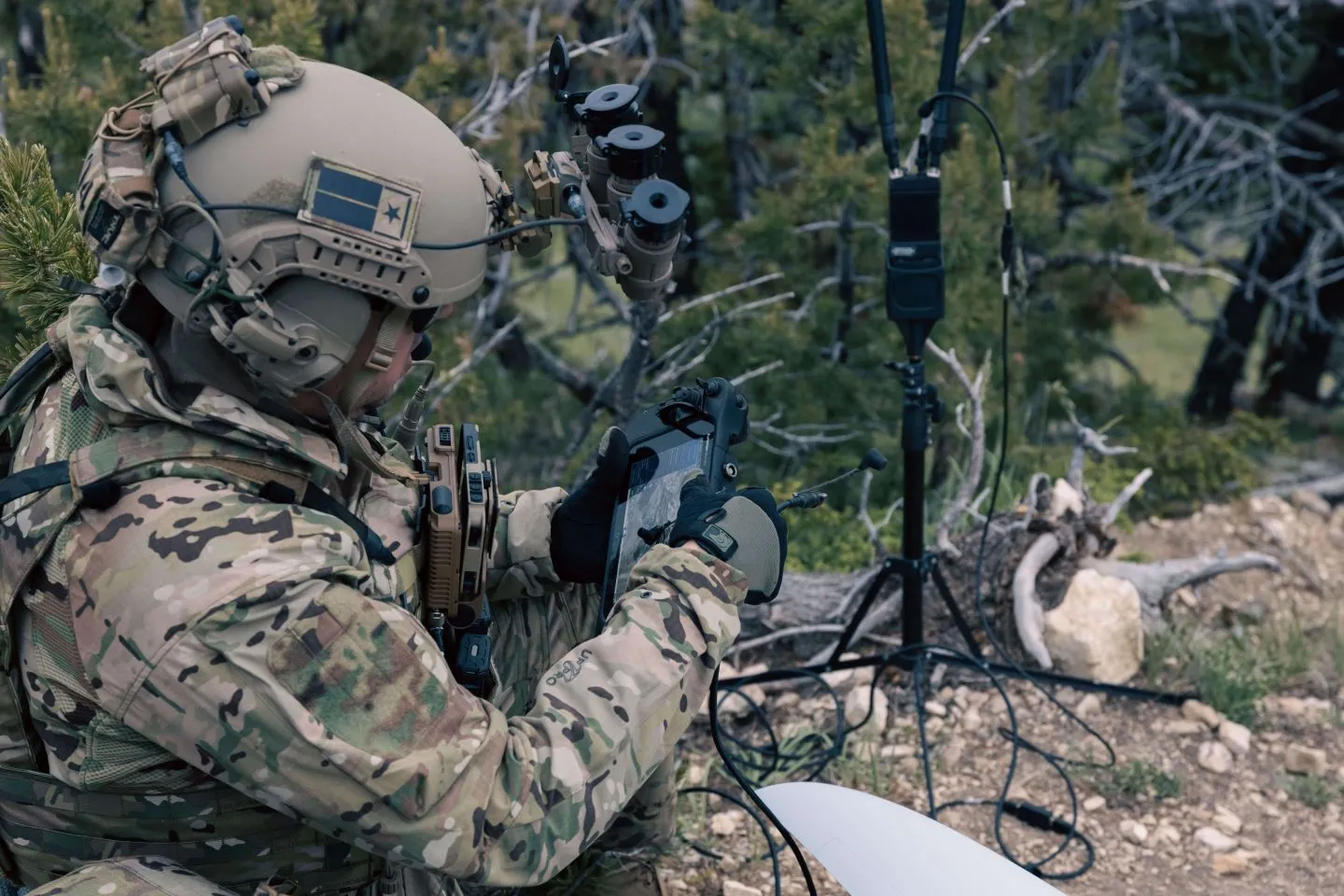

• Handheld Link: 15 km range, 12 hr battery
• Matrix Long-Range: 60+ km range, 10+ hr battery

Ground Control

• SRoC: 7" display, IP65, swappable batteries

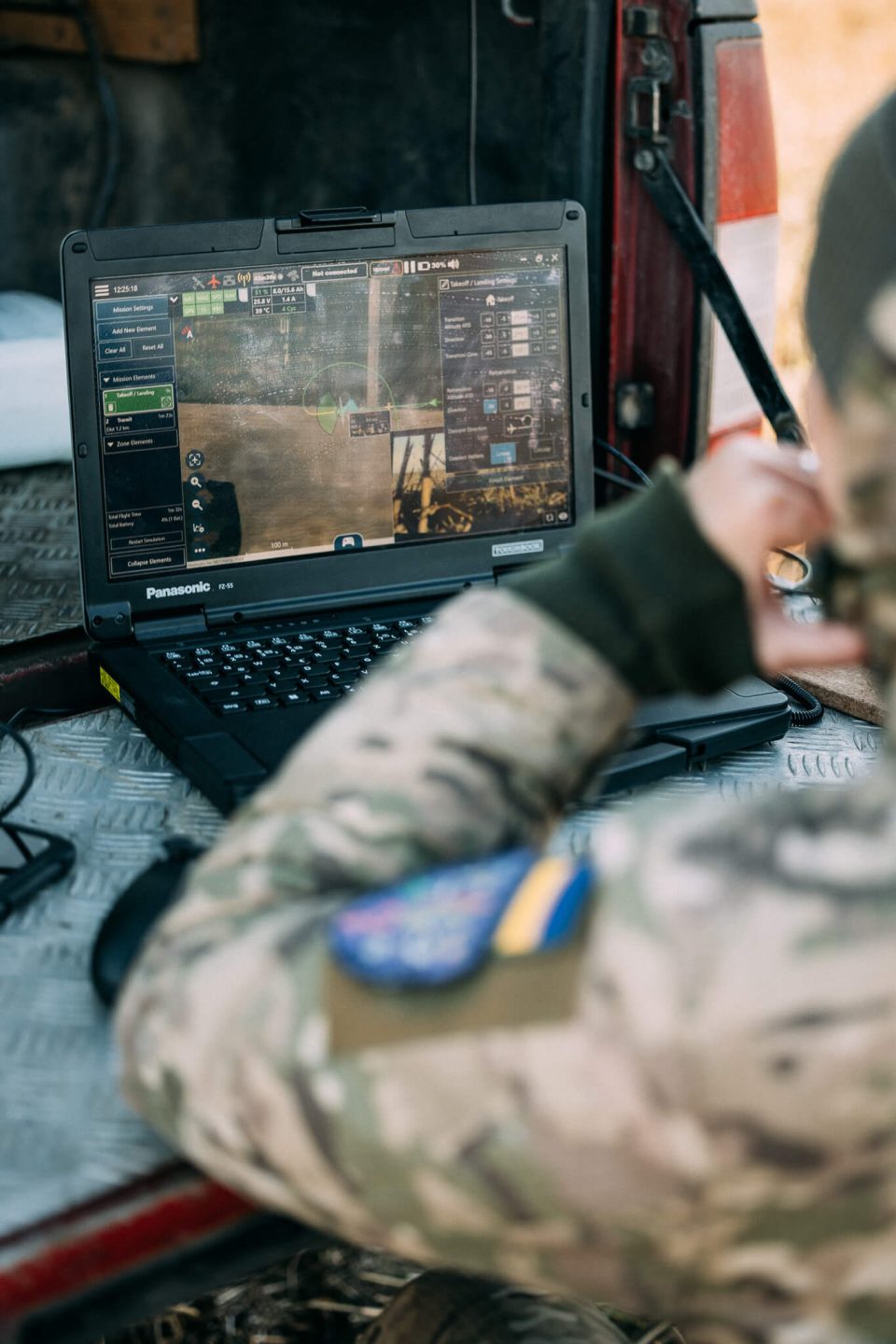

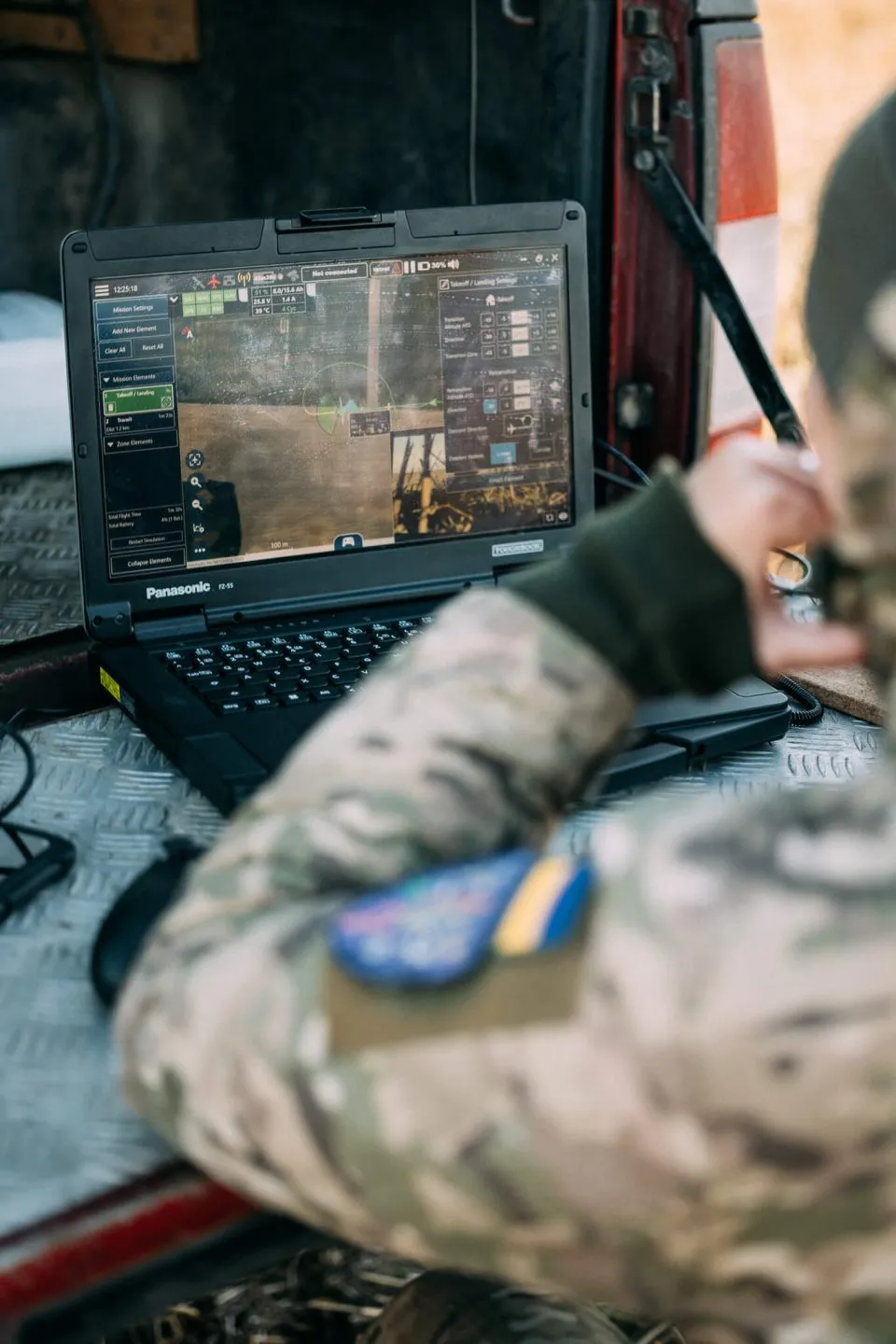

• Toughbook: 14" display, IP53, 38 hr battery
• Interoperability: STANAG 4609, TAK, SitaWare, C4ISR

AI Processing

• 2x NVIDIA Jetson Orin for onboard edge computing
• Object detection, classification, tracking (EO/IR)
• Modular ROS/Docker architecture

Descriptive Summary

Vector AI is Quantum Systems' most advanced tactical ISR platform, featuring a revolutionary 2-in-1 design that combines extended-endurance fixed-wing flight with precision multicopter hovering capability. The shared fuselage architecture allows operators to select the optimal configuration for each mission—wide-area surveillance or confined urban monitoring—while maintaining common sensors, data links, and ground equipment.

The Raptor-360 gimbaled sensor delivers 360° continuous surveillance with high-resolution EO/IR imaging and detection ranges up to 40 km. Dual NVIDIA Jetson Orin processors provide real-time onboard AI for object detection and tracking, transforming sensor data into immediate tactical intelligence. AES-256 encrypted Silvus mesh networking with dual-band operation and AI-driven anti-jamming ensures secure communications in contested electromagnetic environments.

Designed for rapid deployment, Vector AI sets up in under three minutes by a single operator and packs into a compact tactical backpack. The platform supports GNSS-denied navigation, autonomous operations, swarm missions, and full integration with battle management systems including TAK, SitaWare, and FacNav. With modular auxiliary bays for SIGINT, CRPA, and third-party payloads, Vector AI adapts to evolving mission requirements across border security, artillery fire optimization, search and rescue, and law enforcement operations.

‍
