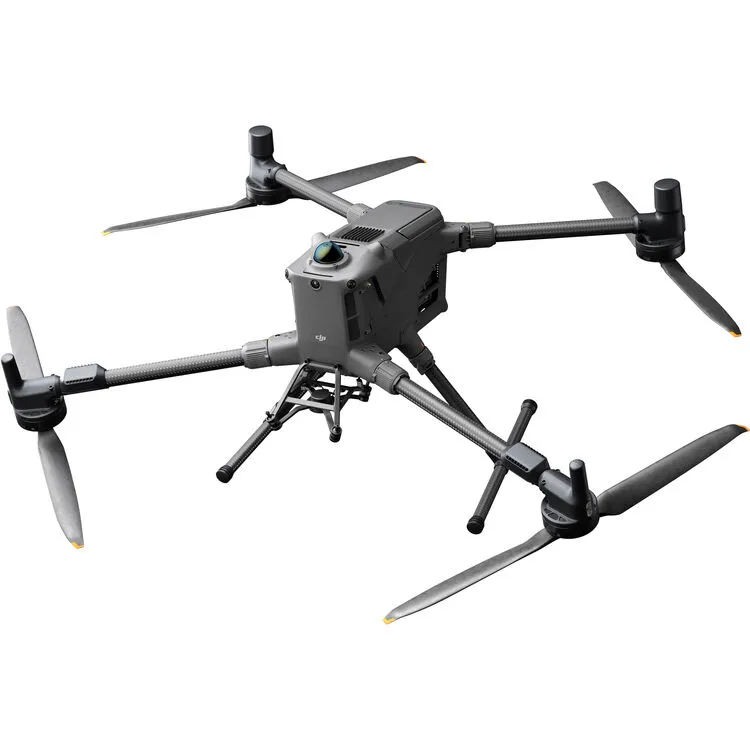

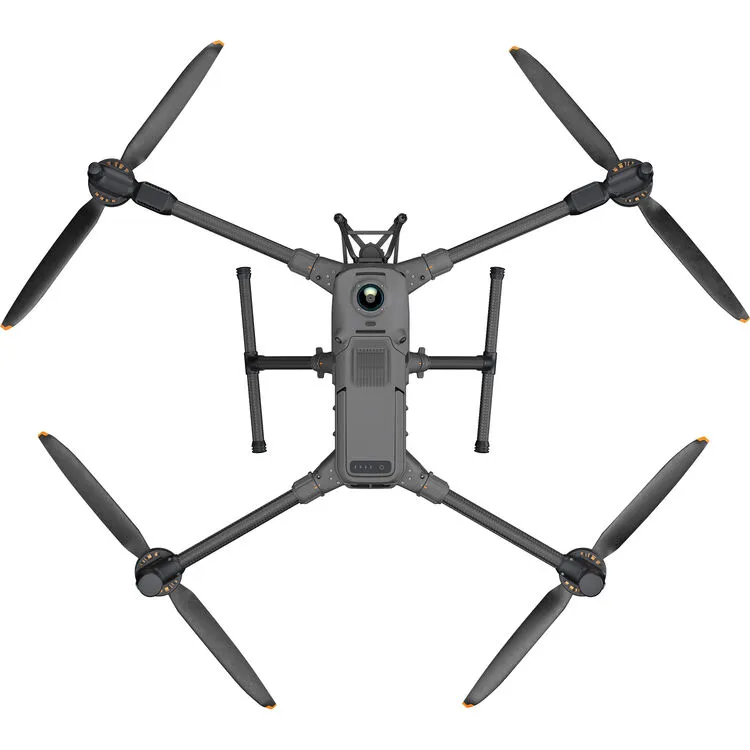

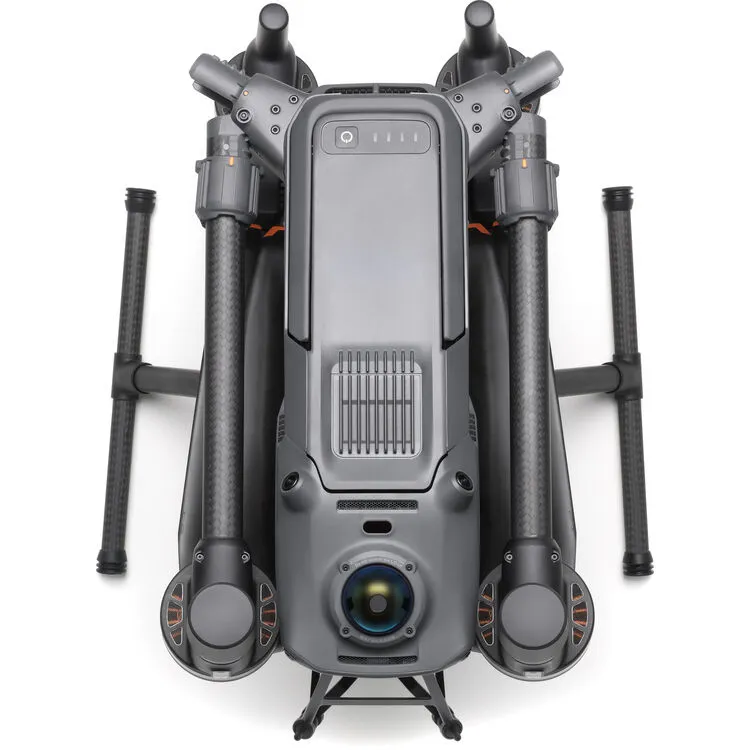

DJI Matrice 400 Overview
The DJI Matrice 400 is a heavy-duty enterprise drone engineered for long-duration missions, complex environments, and demanding professional operations. Featuring up to 59 minutes of flight time, a 6 kg maximum payload, IP55 protection, centimeter-level RTK positioning, and DJI O4 Enterprise Enhanced transmission up to 40 km, the Matrice 400 provides a powerful and adaptable aerial platform for surveying, mapping, infrastructure inspection, public safety, and emergency response.
DJI Matrice 400 Key Highlights:
- 59-Minute Flight Time: Provides extended endurance for large-scale inspections, mapping missions, and other long-duration operations.
- 6 kg Maximum Payload: Supports heavy and specialized payload configurations, with multiple gimbal mounting options for flexible enterprise applications.
- Omnidirectional Sensing: Combines an omnidirectional binocular vision system with rotating LiDAR, upper LiDAR, a downward 3D infrared sensor, and six-direction mmWave radar.
- DJI O4 Enterprise Enhanced Transmission: Provides transmission distances up to 40 km (24.9 miles) in unobstructed, interference-free conditions.
- High-Precision RTK: Delivers RTK positioning accuracy of 1 cm + 1 ppm horizontally and 1.5 cm + 1 ppm vertically.
- IP55 Protection: Designed for professional field operations across challenging working environments and temperatures from -20°C to 50°C (-4°F to 122°F).
- High-Altitude Performance: Supports takeoff altitudes up to 7,000 m.
- ADS-B In: Integrated ADS-B In with dual antennas supports reception at distances up to 20 km, providing additional awareness of nearby crewed aircraft.
- Starlight FPV Camera: A 1080p FPV camera with a wide 150° diagonal field of view and Starlight-grade night vision supports operations in low-light environments.
DJI Matrice 400 Specs:
- Weight: 9.74 kg with batteries
- Takeoff Weight: 15.8 kg
- Payload: 6 kg
- Flight Time: Up to 59 minutes
- Hover Time: Up to 53 minutes
- Flight Distance: 49 km
- Maximum Horizontal Speed: 25 m/s
- Maximum Wind Speed Resistance: 12 m/s during takeoff and landing
- Maximum Takeoff Altitude: 7,000 m
- Ingress Protection: IP55
- Operating Temperature: -20°C to 50°C (-4°F to 122°F)
- Video Transmission: DJI O4 Enterprise Enhanced
- Maximum Transmission Distance: 40 km (24.9 miles)
- RTK Accuracy: 1 cm + 1 ppm horizontal; 1.5 cm + 1 ppm vertical
- GNSS: GPS + Galileo + BeiDou + GLONASS with RTK enabled
- Obstacle Sensing: Omnidirectional binocular vision, rotating LiDAR, upper LiDAR, downward 3D infrared sensing, and six-direction mmWave radar
- FPV Camera: 1080p/30fps with Starlight-grade night vision
- ADS-B In: Dual-antenna receiver with reception up to 20 km
- Flight Battery: TB100, 20,254 mAh, 977 Wh
- Remote Controller: DJI RC Plus 2 Enterprise Enhanced
- Payload Interfaces: Multiple gimbal connectors and four E-Port V2 interfaces
Summary
The DJI Matrice 400 combines extended flight endurance, high payload capacity, advanced sensing, and precise positioning in a rugged enterprise platform. With up to 59 minutes of flight time, a 6 kg payload capacity, 40 km O4 Enterprise Enhanced transmission, IP55 protection, and LiDAR- and radar-assisted omnidirectional sensing, it provides a versatile solution for surveying, mapping, infrastructure inspection, public safety, emergency response, and other demanding enterprise operations.
